Geared Manual Door

Brand - CERES

Manual Door Elevators :-
Geared Motor With Manual Door – CERES

These are the elevators which require manual efforts to open and close the doors. There are four types of manual doors –

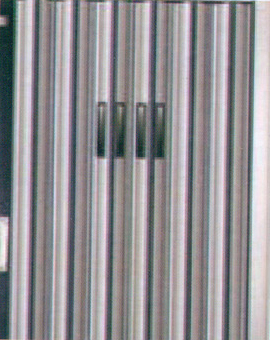

1) Collapsible gate elevator.

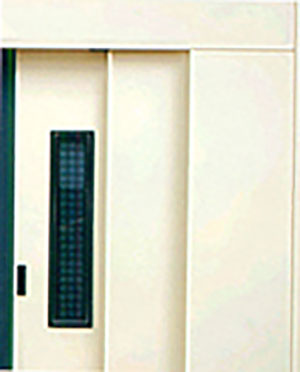

2) Imperforated doors elevator.

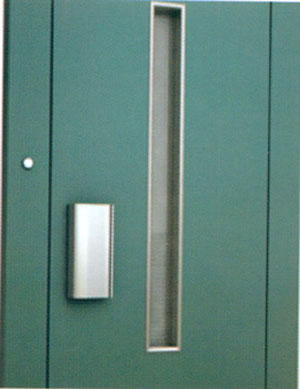

3) Swing door elevator.
4) Combination of collapsible and Swing door Elevator.

Further these doors can be manufactured in M.S. or S.S.



1. Installation with geared machine and manual operated doors.

2. Budgeted solution for vertical transportation for your building and complexes.

3. Design for great economical efficiency.

Standerd Manual Door -With M/C Room - Passenger Lift Installation 0.6mps

•

•

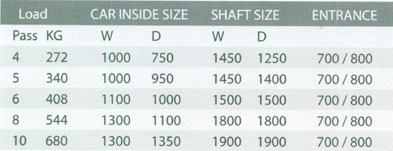

Specification :

Max Speed	0.7 mps
Max Travel	21 mtrs
Max no. of Stops	8
Max Load	3000 kgs
Display	7 seg/ Don Matrix/ LCD
